STEELAB SML – Design and functional planters for made-to-measure revegetation of large surfaces.
Like traditional prefabricated concrete walls, the STEELAB SML L-shaped wall is based on the assembly of modules along the edge to form made-to-measure compositions. The sheet metalwork adds aesthetic appeal and functionality to the concept.
From an aesthetic point of view, the sheet metal façade panel offers a sober, contemporary look. The choice of material and finish is vast: from lacquered aluminium in the colour of your choice to self-levelling steel such as Corten® or stainless steel.

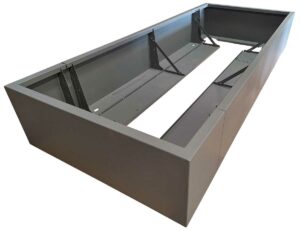

L-shaped aluminium walls are used for custom-made planting of large bottomless planters. They come in straight sections and custom-made corner sections to define the area to be planted.
STEELAB SML – Product description
The top edge of each element is finished with a fold and a counter-fold. The connection between each module is made on a straight edge of sheet metal, without a fold, by means of a splice joint. The fasteners are not visible on the outside and are secured by means that avoid the risk of galvanic corrosion. Vertical ribs reinforce each element at its end, and additional reinforcements are added to maintain the rigidity of long modules.
This makes the entire structure easy to manoeuvre, facilitating transport and handling on site.
Materials – Aluminium and steel
Aluminium 3 to 6mm depending on size. This naturally strong, light and durable material is a good choice for planters.

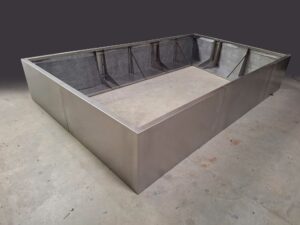

We can offer versions in Corten® steel or stainless steel.
All Colours and Finishes
The facade of the low wall is painted on all external faces and on the internal returns.
We offer two finishes depending on the constraints of the project:
– Liquid paint – ¨Pickling / Epoxy primer / Polyurethane finish and varnish;
– Powder coating – Pickling / Epoxy primer / Polyester finish.
Installation
Low aluminium walls should be installed on a stable, level surface. A drainage layer underneath the walls will prevent water run-off from being retained by the planter. A protective interlayer can be provided to prevent paint abrasion.
The joint ensures that the modules are aligned with each other and absorbs the effects of thermal expansion, particularly over long lengths. This connecting piece allows each module to be dismantled independently for maintenance purposes.
To fulfil its earth retention function, the low wall can be self-stabilising or sealed. Self-stabilising installation requires a footing equivalent to the height of soil retained. When it can be sealed, this footing can be reduced but will be completed by sealed braces or tie rods joining opposing modules.
